SMV-1 Smoking Machine Verifier

The Biomedon SMV-1 is a combined puff volume measurement and leak testing instrument designed for the verification of analytical smoking machines per ISO 3308, ISO 7210 and ISO 20778.

Unlike traditional methods requiring separate bubble flowmeters and water column manometers, the SMV-1 integrates both measurements into a single instrument with digital precision. The Sensirion SFM4300-20-P mass flow sensor provides factory-calibrated measurement with real-time flow profile visualization, while the pressure decay leak test module quantifies leakage rates against the ISO 7210 criterion of ≤1 ml/min.

Specifications

Technical data

Flow sensor	Sensirion SFM4300-20-P
Flow range	±20 SLM
Leak test method	Pressure decay
Leak criterion	≤1 ml/min (ISO 7210 Art. 6)

Puff volume target	55 ml ± tolerance (ISO 20778)
Interface	13.3" AMOLED touchscreen
Power	24V DC
Enclosure	Anodized aluminum, Swiss Made

Key Features

What sets the SMV-1 apart

Real-time flow profiling

Real-time puff volume measurement with flow profile display for immediate visual verification of smoking machine performance.

Automated leak testing

Automated pressure decay leak testing per ISO 7210, replacing manual water column manometer procedures.

Integrated data logging

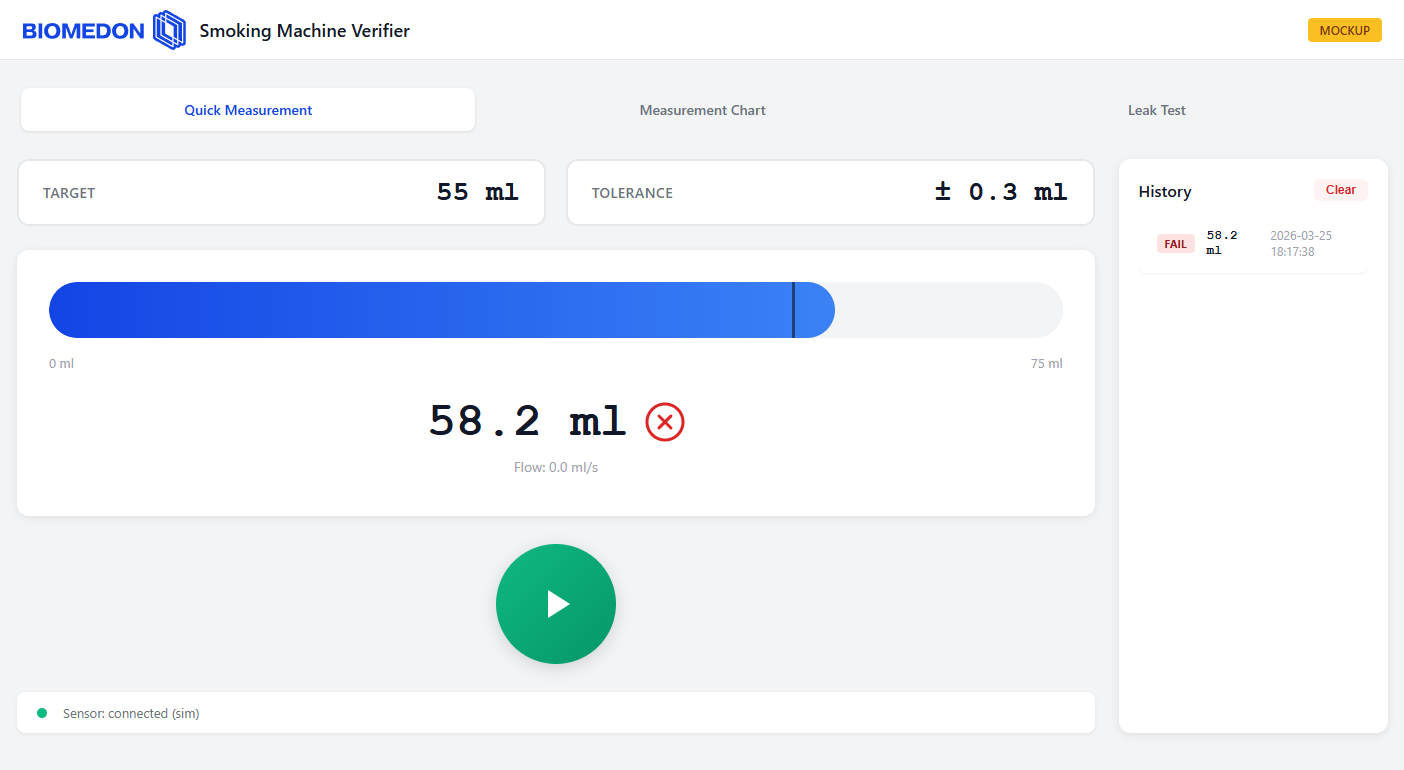

Integrated touchscreen HMI with data logging and CSV export for complete measurement traceability.

Dual-product compatible

Designed for both conventional cigarettes and heated tobacco products, supporting ISO 3308 and ISO 20778 protocols.
